Understanding the Impact of Lighting Misalignment on Racking Efficiency and Shadowing

In warehouses and storage facilities, the alignment of lighting systems with structural bays and racking aisles plays a crucial role in operational efficiency. When lighting grids do not match the layout of racks and aisles, it creates shadowed areas that reduce visibility, slow down picking and stocking processes, and increase safety risks. This post explores how misalignment between structural bays, lighting grids, and rack aisles affects warehouse performance and offers practical advice on designing lighting layouts that support efficient racking plans.

How Structural Bays, Lighting Grids, and Rack Aisles Interact

Warehouses are typically designed with structural bays—sections defined by columns and beams spaced at regular intervals. These bays often determine the placement of racking systems, which are arranged in aisles for easy access. Lighting grids, usually installed in a ceiling-mounted pattern, are meant to illuminate these aisles evenly.

When all three elements—structural bays, lighting grids, and rack aisles—are aligned, the lighting fixtures sit directly above aisles, providing consistent illumination. This setup minimizes shadows and creates a safer, more productive environment.

What Happens When These Elements Are Misaligned

Misalignment occurs when lighting grids do not correspond with the layout of racks and aisles. This can happen for several reasons:

• Different design teams working independently on structural, racking, and lighting plans without coordination.

• Retrofitting lighting in existing warehouses where rack layouts have changed.

• Standardized lighting grids installed without considering specific aisle widths or rack positions.

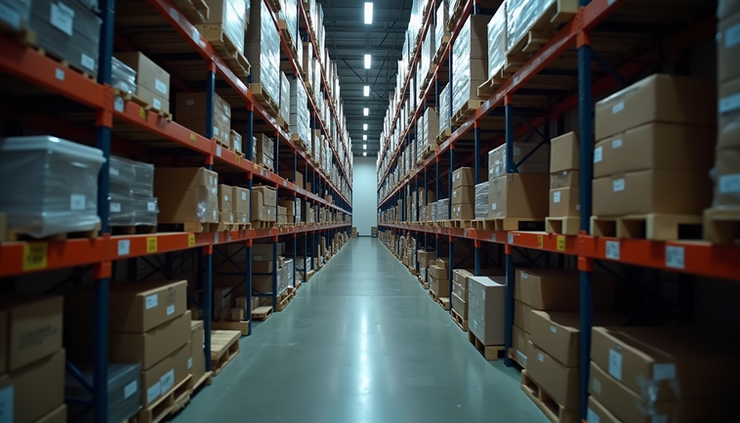

The result is uneven lighting distribution. Some aisles receive too much light, while others fall into shadow. Shadowed areas make it difficult for workers to read labels, identify products, and navigate safely. This inefficiency can lead to slower picking times, increased errors, and higher accident risk.

Examples of Shadowing and Its Effects

Imagine a warehouse where racks are arranged in 10-foot-wide aisles, but lighting fixtures are spaced every 15 feet based on structural bays. Some aisles will be directly under lights, brightly lit, while others will be partially or fully in shadow.

In one case study, a distribution center reported a 15% increase in picking errors after changing rack layouts without adjusting lighting. Workers struggled to see barcodes and product details in shadowed aisles, leading to mispicks and delays.

Shadowing also affects safety. Poorly lit aisles increase the risk of trips, falls, and collisions with equipment. In warehouses with heavy machinery like forklifts, clear visibility is essential to prevent accidents.

Designing Lighting Layouts That Match Racking Plans

To avoid these problems, lighting designers and warehouse planners should collaborate early in the design process. Here are key steps to ensure alignment:

• Map rack aisles and structural bays together before finalizing lighting plans.

• Use flexible lighting grids that can be adjusted to fit aisle widths rather than fixed spacing based on structural bays alone.

• Consider aisle-specific lighting fixtures such as linear LED lights that run parallel to aisles, providing continuous illumination.

• Perform lighting simulations to identify potential shadow zones and adjust fixture placement accordingly.

• Plan for future changes by installing modular lighting systems that can be repositioned as rack layouts evolve.




Practical Tips for Retrofitting Existing Warehouses

If a warehouse already experiences misalignment, there are ways to improve lighting without a full redesign:

• Add supplemental task lighting in shadowed aisles using portable or fixed fixtures.

• Replace outdated fixtures with brighter, more energy-efficient LEDs that provide better coverage.

• Use reflective surfaces on racks or walls to bounce light into darker areas.

• Rearrange racks slightly if possible to better align with existing lighting grids.

• Implement regular lighting audits to monitor and address problem areas.




Benefits of Proper Lighting Alignment

Aligning lighting with racking plans delivers several advantages:

• Improved visibility reduces picking errors and speeds up operations.

• Enhanced safety lowers accident rates and protects workers.

• Energy savings by avoiding over-illumination in some areas and under-illumination in others.

• Better worker satisfaction as employees work in well-lit, comfortable environments.

• Easier maintenance since lighting fixtures are logically placed and accessible.
